Omega B-4
2¼"x3¼" Enlarger

Introduced: 1949
Discontinued: 1953

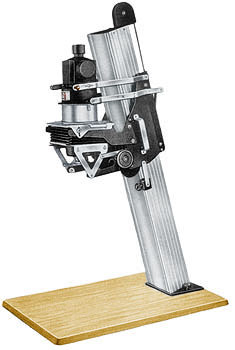

Omega B-4 Manual Focus Enlarger

The B-4 was the less expensive manual focus companion to the autofocus B-3. The column was extruded aluminum similar to the B-3, but the B-4 had a "lift and lock" elevation system as compared to the B-3's rack and pinion system.  And while the B-3 had an adjustable triple condenser system, the   B-4 came with double condensers requiring supplementary condensers for printing 6x6 and 35mm formats. The supplementary condenser lens for 50mm or 75mm lenses was purchased together with the corresponding lensmount.

Rather than the familiar system using brass focus rods, focusing on the B-4 used a knob operated cam system. The lamp used in the B-4 was the small PH111, allowing the lamphouse to be made smaller compared to that on the Super B

Used Advice: Still useable if complete and in good condition, but not as convenient to use as later models.  All parts and accessories have been discontinued for decades.


Enlargers | Negative Carriers | Lens Mounts | Accessories | Lamps

Enlargers

  Status
  B-4 Condenser Enlarger  (includes 2" lensmount and 1 negative carrier) D


Negative Carriers

  Glassless Rapid Shift Negative Carrier  (specify size)  D
  Glass type Rapid Shift Negative Carrier  (specify size) D

(Note: Most negative carriers listed for the B-7 and B-8 enlargers can be used with the B-4)



Lens Mounts

  Flat Lensboard for use 2" Lenses  (includes thick supplementary lens) D
  1½" Cone for use with 3" Lenses  (includes thin supplementary lens) D
  2" Cone for use with 3½" Lenses   D
  Lensmount for 50mm f/3.5 Leica Lens (includes thick supplementary lens) D
  Lensmount for 2¼"x3¼" Speed Graphic Lens D

(Note: Lensmounts  listed for the  B-8 enlarger will also fit the B-4)



Accessories

  Auxiliary Focusing Attachment  (for small prints and reductions)  D
  Copy attachment  (accepts 2¼"x3¼" Graphic type film holders) D
  Varigam Filter Holder  (for Defender cardboard type filters) D

S03004

B-4 Enlarger Instruction Manual C


Lamps

471-001

PH111A Opal Enlarger Lamp, 75W 125V C
