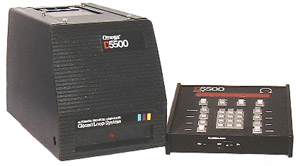

Omega D5500 Dichroic Lamphouse

The D5500 CLS Dichroic was Omega's offering of an innovative colorhead no longer based on mechanical cams and dials. The "closed loop system" microprocessor control provided print repeatability unmatched by other systems.

Control of the colorhead settings was from a convenient table level controller or translator/controller, connected to the lamphouse via a ribbon cable, with the controllers also providing timer functions. The unit automatically compensated for any change in color temperature, adjusting the filters to maintain the set filtration levels. Since filtration levels were electronically controlled, accuracy was improved compared to using the mechanical thumbwheels on the Chromega D Dichroic colorhead. The controllers also provided a computer interface port, the intention being that users could control the enlarger settings from a computer using custom software.

Used Advice: The D5500 Dichroic system has proven both reliable and efficient. Users have found that the benefits far outweigh any learning curve required. On used units, the electronics should be closely examined for proper operation. Early controllers with the membrane keypad were prone to keyboard failure. Conversion kits are still available, but not inexpensive.

**Major Components**
407-904	CLS Auto Dichroic Lamphouse (requires controller)	DL
407-908	CLS Auto Dichroic Lamphouse with Controller III	O
407-909	CLS Auto Dichroic Lamphouse with Translator/Controller III	O
407-911	CLS Auto Dichroic Controller	D
407-921	CLS Auto Dichroic Controller II	D
407-923	CLS Auto Dichroic Controller III	DL
407-910	CLS Translator/Controller	D
407-913	CLS Translator/Controller III	DL
407-933	CLS Translator/Controller IV	DL

**Accessories**
407-901	4"X5" Light Multiplier (early type) (replacement)	DR
407-902	6x7cm Light Multiplier (early type)	DR
407-903	35mm Light Multiplier (early type)	DR
407-920	Adapter Kit with Carrier Cassette for mounting on D5/D6 chassis	DL
407-926	4"X5" Light Multiplier with color probe (replacement)	DL
407-927	6x7cm Light Multiplier with color probe	DL
407-928	35mm Light Multiplier with color probe	DL
407-930	Parallel Computer Interface Cable	DL
429-224	Chassis Linkage Kit for mounting on D5/D6 chassis (uses D5 carriers)	DL
429-930	Conversion Kit for Auto CLS Translator/Controller	DL
429-931	Conversion Kit for Auto CLS Controllers I and II	DL
461-058	Dual Pedal Footswitch for Controllers	C

**Lamps**
471-900	Quartz Halogen 200w/82v	C
