Arkay

Graphic Arts Processing Sinks

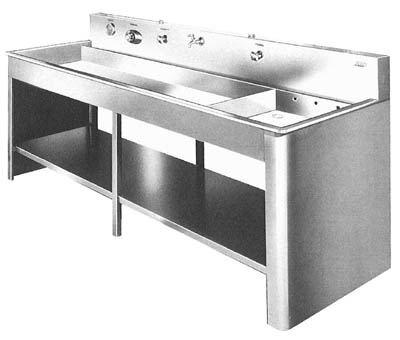

Arkay 2024GA sink with optional 1-GA Plumbing Package
Model 2024GA with optional 1-GA plumbing package



Arkay's two compartment tray processing and wash sinks are configured to make processing a little easier and more controllable. The larger compartment is sized to accommodate three processing trays with room to spare. The wash compartment is oversized for efficient material washing. A full-length dump trough at the rear can be used to dump exhausted processing solutions as well as collect the overflow wash water from the wash compartment. The integral 9" high by 5" wide backsplash conceals plumbing connections. Graphic Arts series sinks are constructed of 18 gauge Type 316 LC stainless steel, and include a black vinyl-clad heavy gauge steel stand and shelf. These sinks are available in two standard models, but custom sizes are available on request.


Options

- stainless steel stand and shelf
- stainless steel duckboard for tray comparment
- PVC sink mat for tray compartment
- factory installed 1-GA or 2-GA plumbing packages


Dimensions and Specifications

Model 1620GA
Outside Dimensions (LxW): 83" x 36"
Shipping Weight: 420 lbs.

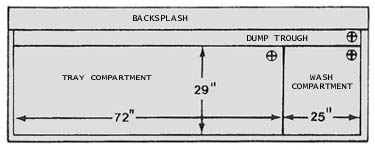

Model 2024GA
Outside Dimensions (LxW): 100" x 40"
Shipping Weight: 500 lbs.

Factory Installed Plumbing Packages

The 1-GA Plumbing Package includes:
1 - dial thermometer
1 - Hydroguard water temperature control
2 - inlet water control valves
1 - K-100VB faucet with vacuum breaker
2 - water inlet jets (1 tray and 1 wash)
2 - vacuum breakers (for sink inlets)
1 - SP-4 Standpipe (for tray compartment)


The 2-GA Plumbing Package includes:
1 - dial thermometer
1 - Hydroguard water temperature control
2 - inlet water control valves
1 - K-100VB faucet with vacuum breaker
2 - water inlet jets (1 tray and 1 wash)
2 - vacuum breakers (for sink inlets)
1 - SP-4 Standpipe (for tray compartment)
1- K-200 DS hot & cold swing faucet with spray



Arkay Photo Processing Sink Catalogue PDF
(6 pages, 725KB, requires Adobe Acrobat Reader)
