Arkay

Economy Stainless Steel Sinks

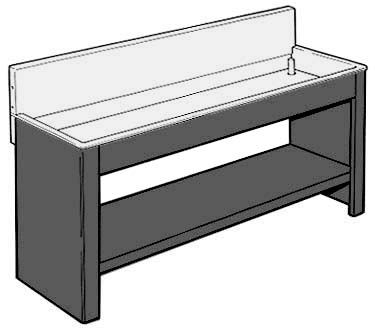

Arkay SQP Series Sink with optional stand and standpipe
Shown with optional stand & shelf, backsplash, and standpipe



Arkay's Economy Stainless Steel Sinks provide outstanding value. Constructed of 20 gauge Type 316 LC stainless steel, they are heliarc welded, passivated and polished with the same high quality workmanship as all Arkay sinks.  The sinks are undercoated for sound insulation and condensation prevention. Economy Stainless Steel Sinks are available in 6" depth, with 24" and 30" widths in a range of standard lengths from 48" to 96".  Choose from a variety of options and accessories to configure the sink to meet your requirements.


Economy Sink Specifications

Note: Sink pan, stand & shelf, and backsplash are ordered as separate items.

Model

Inside Dimensions* (in.)
W x L x D

Vinyl-clad Stand
 and Shelf

Deluxe 10" High Backsplash

ES 2448

24 x 48 x 6

EST 2448 DBS 48

ES 2460

24 x 60 x 6 EST 2460 DBS 60

ES 2472

24 x 72 x 6 EST 2472 DBS 72

ES 2484

24 x 84 x 6 EST 2484 DBS 84

ES 2496

24 x 96 x 6 EST 2496 DBS 96

ES 3048

30 x 48 x 6 EST 3048 DBS 48

ES 3060

30 x 60 x 6 EST 3060 DBS 60

ES 3072

30 x 72 x 6 EST 3072 DBS 72

ES 3084

30 x 84 x 6 EST 3084 DBS 84

ES 3096

30 x 96 x 6 EST 3096 DBS 96

*For outside dimensions, for sink pan only or sinks with stand and shelf, add 3" to length and 3" to width (front  to back). For sinks with backsplash add 3" to length and 6" to width (front to back).

Options

- 38" high heavy gauge, black vinyl-clad, chemical resistant steel sink stand and shelf
- sink stand can be supplied without shelf, modified for ADA wheel chair access
- 10" high stainless steel backsplash
- factory installed faucets and economy plumbing packages for sinks with backsplash

Accessories

- stainless steel duckboard
- PVC sink mat
- supply water filter packages
- PVC overflow standpipe in 4", 6", or 8" height


Arkay Photo Processing Sink Catalogue PDF
(6 pages, 725KB, requires Adobe Acrobat Reader)
