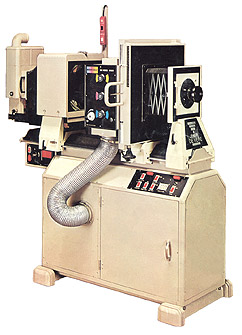

DeVere 810H 8"x10" Horizontal Enlarger

DE VERE
810H

8"x10" format
horizontal enlarger




The was the second generation of mural enlargers from DeVere.  Designed for one person operation, it incorporates remote and motorized controls.  The drive system could be disengaged so that the trolley could be quickly moved manually, with the remote control used for final sizing.  A stabilizer and timer are built-in, as is 4-way negative  masking.

Chassis
2501 810H Horizontal Enlarger Chassis   (240V) D


Lightsources
2502 2000W 240V Dichromat Head  D
2514 Motorized Filtration option fitted to Dichromat  (factory option only)
2503 1000W Multi-Condenser Lamphouse
2505 240mm condenser lens assembly for Multi-Condenser Head
2506 180mm condenser lens assembly for Multi-Condenser Head
2511 2000W 240V Difcon lamphouse


Negative Carriers
1751 8"x10" Master Negative Carrier   C
2508 Univ. 100' Spool Carrier Drawer  (accepts film sizes 35mm to 240mm ARF)
2516 Pin Register Film Drawer
1752 5"x7" Glass Negative Mask for 1751
1753 Small Format Adapter for 1751
1910 4"x5" Cut Film Negative Mask for 1753 C
1911 9x12cm Cut Film Negative Mask for 1753 C
1912 6x9cm Roll Film Negative Mask for 1753 C
1919 6x7cm Roll Film Negative Mask for 1753 C
1913 6x6cm Roll Film Negative Mask for 1753 C
1967 6x4.5cm Roll Film Negative Mask for 1753 C
1914 35mm Roll Film Negative Mask for 1753 C
1957 35mm Mounted Transparency Mask for 1753 C
1940 Custom Mask, made to order for 1753 C
2014 8"x10" Negative Carrier Glass for 1751 Carrier C
2013 8"x10" Anti-Newton Glass for 1751 Carrier C
1514 5"x7" Negative Carrier Glass for 1752 Mask  (12.5cm x 17.5cm) C
2623 5"x7" Anti-Newton Glass for 1752 Mask  (12.5cm x 17.5cm) C
1515 5"x7" Negative Carrier Glass for 2045 Mask  (14cm x 19cm) C
2677 5"x7" Anti-Newton Glass for 2045 Mask  (14cm x 19cm) C
1915 4"x5" Negative Carrier Glass for 1753 Adapter C
1970 4"x5" Anti-Newton Glass for 1753 Adapter C


Liquid Drawer System
2504 Liquid Drawer  D
1726 8"x10" Mask  D
1727 5"x7" Mask D
1728 4"x5" Mask D
1729 9x12cm Mask D
1730 13x18cm Mask D
1731 18x24cm Mask D
1741 6x9cm Mask D
1742 6x7cm Mask D
1743 6x6cm Mask D
1744 35mm Mask D
1739 Spare Tank D


Lens Mounts
1715 Recessed Lens Mount for 50-135mm lenses - Blank
1747 Dished Lens Mount for 150mm lenses - Blank
1712 Flat Lens Mount for 180-360mm lenses - Blank


Accessories
2521 1.5 metre Track Module
2522 1.0 metre Track Module Extension
2523 1.5 metre Track Module Extension
Digital Timer option  (factory option only) D
2510 8"x10" Copy Adapter Kit
1102 8"x10" Springback O
1105 5"x7" Springback O
1106 4"x5" Springback  (also accepts standard roll film backs) O
4806 8"x10" Springback
4807 5"x7" Springback
4808 4"x5" Springback  (also accepts standard roll film backs)
1749 5"x5" Light Collecting Box for Dichromat Head
1750 10"x10" Light Collecting Box for Dichromat Head   (replacement)
1713 Thick Spacer for use with 180mm Supplementary Condenser lens (replacement)
1714 Thin Spacer for use with 180mm Supplementary Condenser lens (replacement)
1745 Diffuser Drawer  for Multi-Condenser Lamphouse  (replacement)
1746 Filter Drawer  for Multi-Condenser Lamphouse  (replacement)
1721 12cm Filter Frame set for Multi-Condenser Lamphouse
1736 Spare 12cm Filter Mount
1737 Opal Glass Diffuser for Multi-Condenser Lamphouse
1738 Ground Glass Diffuser for Multi-Condenser Lamphouse
1526 3½" dia. Heat Filter  for Multi-Condenser Lamphouse  (replacement)
2023 Large Swingaway Amber Filter with mounting post
2024 Large Swingaway Red Filter with mounting post C


Lamps
1748 ELC Lamp for Dichomat and Difcon lamphouses C
2507 A1/242 Lamp for Multi-Condenser Lamphouse C
