DeVere 108S 10x10 Enlarger

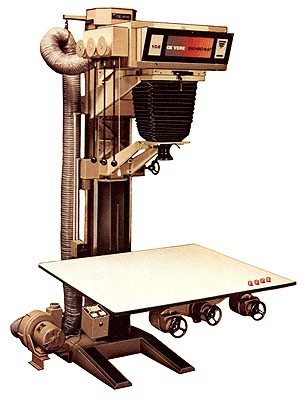

DeVere 108S 10"x10" Enlarger

DE VERE
108S-108A/F

10"x10" motorized
vertical enlargers

The 108S and 108A/F enlargers were the forerunners of the current Vulcan model and use the same negative carrier systems. The 108S was supplied with a pin registration glass carrier, but both it and the standard negative drawer, with optional masks, could accommodate all film formats from 35mm to 10"x10". The aerial roll film models were supplied with a roll film assembly which could handle up to 500' of aerial film. Their large, adjustable baseboards allowed production of prints up to 40"x60", with the A/F offering an optional tilting baseboard. The motorized elevation and focus controls are located at the front of the drop table, with the control box/timer situated on the left side.

The 108A/F was also available in a 32cm version.

**108S**
1010	108S Enlarger chassis	D

**Lightsources**
1016	2000W 220V Dichromat Lamphouse (requires stabilizer)	D
1030	2500W Stabilizer for 1016 Dichromat Lamphouse	D
1012	4000W 220V Tungsten Halogen Light Source (requires stabilizer)	D
1031	4000W Stabilizer for 1012 Tungsten Halogen Light Source	D
1022	120V-220V Auto Transformer	D

**108A/F**
1026	Aerial Roll Film Enlarger with 2Kw Dichromat Lamphouse	D
1029	Aerial Roll Film Enlarger with 2Kw Dichromat and Tilt Baseboard	D
1025	Aerial Roll Film Enlarger with Tungsten Halogen Lamphouse	D
1028	Aerial Roll Film Enlarger with T/H Lamphouse and Tilt Baseboard	D
1035	32cm Aerial Roll Film Enlarger with 2Kw Dichromat Lamphouse	D
1037	32cm Aerial Roll Film Enlarger w/ 2Kw Dichromat and Tilt Baseboard	D
1034	32cm Aerial Roll Film Enlarger with Tungsten Halogen Lamphouse	D
1036	32cm Aerial Roll Film Enlarger w/ T/H Lamphouse and Tilt Baseboard	D

**Negative Carriers**
1011	10x10 Standard Negative Drawer	C
8856	Aerial Roll Film Drawer (replacement for aerial roll film models)
1754	24cm sq. Aerial Carrier for 1011
1751	8"x10" Glass Negative Carrier for 1011	C
1752	5"x7" Glass Negative Carrier for 1011 (old type)	D
1760	5"x7" Glass Negative Carrier for 1011 (new type)	C
1753	Small Format Adapter for 1011	C

1910	4"x5" Cut Film Negative Mask for 1753 Adapter	C
1911	9x12cm Cut Film Negative Mask for 1753 Adapter	C
1912	6x9cm Roll Film Negative Mask for 1753 Adapter	C
1919	6x7cm Roll Film Negative Mask for 1753 Adapter	C
1913	6x6cm Roll Film Negative Mask for 1753 Adapter	C
1967	6x4.5cm Roll Film Negative Mask for 1753 Adapter	C
1914	35mm Roll Film Negative Mask for 1753 Adapter	C
1957	35mm Mounted Transparency Mask for 1753 Adapter	C
1940	Custom Mask, made to order for 1753 Adapter	C

2014	8"x10" Negative Carrier Glass for 1751 Carrier	C
2013	8"x10" Anti-Newton Glass for 1751 Carrier	C
1514	5"x7" Negative Carrier Glass for 1752 Carrier (12.5cm x 17.5cm)
2623	5"x7" Anti-Newton Glass for 1752 Carrier (12.5cm x 17.5cm)
1515	5"x7" Negative Carrier Glass for 1760 Carrier (14cm x 19cm)
2677	5"x7" Anti-Newton Glass for 1760 Carrier (14cm x 19cm)
1915	4"x5" Negative Carrier Glass for 1753 Adapter	C
1970	4"x5" Anti-Newton Glass for 1753 Adapter	C

**Lensboards**
1023	Deep Recess Lens Mount for 50-80mm lenses - A/F only
1040	39mm Threaded Deep Recess Lens Mount for 50-80mm lenses - A/F only
1014	Recessed Lens Mount for 50-135mm lenses S; 90-135mm lenses A/F
1038	39mm Threaded Lens Mount for 50-135mm lenses S; 90-135mm lenses A/F
1024	Recessed Lens Mount for 150mm lenses - Blank
1039	Recessed Lens Mount with 50mm thread
1013	Flat Lens Mount for 180-300mm lenses - Blank

**Accessories**
1749	5"x5" Light Collecting Box for Dichromat Head	D
1017	Dichro Auxiliary Control	D
1811	Shutter Assembly	D
1812	1 M sq. Vacuum Baseboard	D
1021	Horizontal Mirror - non tilting version	D
1041	Horizontal Mirror - tilting version - A/F only (factory fitted only)	D
1003	Spare 12" sq. Filter Mount for Tungsten Halogen Light Source	D

**Lamps**
1748	ELC Lamp for Dichromat lamphouse	C
1004	Tungsten Halogen Lamp 500W 120V - 117mm	C
