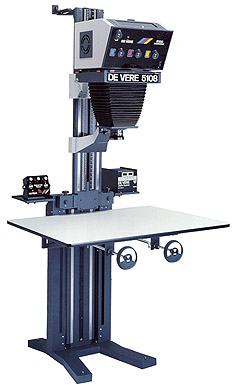

DeVere 5108 8"x10" Enlarger

DE VERE
5108

8"x10" format
vertical enlarger




The 5108 is the large format sibling to the famous De Vere 504.  As such, it incorporates the same features and benefits in a vertical enlarger that can handle up to 8"x10" format negatives, with correspondingly more powerful lamphouses.

Chassis
2046 Bench Enlarger Chassis Mk II  C
2047 Wall Mount Enlarger Chassis Mk II  C
2048 Floorstanding Enlarger Chassis Mk II  C
2049 Extended Floorstanding Enlarger Chassis Mk II  C
8301 Bench Enlarger Chassis Mk II with Autofocus  C
8302 Wall Mount Enlarger Chassis Mk II with Autofocus  C
8303 Floorstanding Enlarger Chassis Mk II with Autofocus  C
8304 Extended Floorstanding Enlarger Chassis Mk II with Autofocus  C
2001 Floorstanding Enlarger Chassis Mk 1 D
2002 Wall Mount Enlarger Chassis Mk 1 D
2003 Bench Enlarger Chassis Mk1 D
2030 Extended Floorstanding Enlarger Chassis Mk1 D


Lightsources
2020 1200W 120V Dichromat Head  (requires control box and stabilizer)
2004 1200W 240V Dichromat Head  (requires control box and stabilizer) C
2051 1200W 120V Dichromat Closed Loop Head  (stabilizer recommended)
2050 1200W 240V Dichromat Closed Loop Head  (stabilizer recommended) C
2010 Cathomag cold cathode lamphouse  (req. 2902 transformer for 120V use) C
2027 1200W 120V Difcon Mk II lamphouse  (requires control box)
  1200W 240V Difcon Mk II lamphouse  (requires control box)
2114 1200W 120V Difcon Mk I lamphouse  (requires control box) D
2018 1200W 240V Difcon Mk I lamphouse  (requires control box) D
2033 1200W 120V Varicontrast lamphouse  (requires control box)
2025 1200W 240V Varicontrast lamphouse  (requires control box)


Power Supplies
3814 120V Control Box for std. Dichromat, Difcon and Varicontrast lamphouses
1042 1500W  120V Voltage Stabilizer
2017 240V Control Box for std. Dichromat, Difcon and Varicontrast lamphouses C
1032 1500W  240V Voltage Stabilizer C
2902 240V to 115V Transformer for Cathomag  (required for 120V use)


Negative Carriers
2007 8"x10" Master Negative Carrier   C
2008 5"x7" Glass Negative Mask for 2007 (old type)  D
2045 13x18cm (5x7) Glass Negative Mask for 2007 (new type) C
2009 Small Format Adapter for 2007 C
1910 4"x5" Cut Film Negative Mask for 2009 C
1911 9x12cm Cut Film Negative Mask for 2009 C
1912 6x9cm Roll Film Negative Mask for 2009 C
1919 6x7cm Roll Film Negative Mask for 2009 C
1913 6x6cm Roll Film Negative Mask for 2009 C
1967 6x4.5cm Roll Film Negative Mask for 2009 C
1914 35mm Roll Film Negative Mask for 2009 C
1957 35mm Mounted Transparency Mask for 2009 C
1940 Custom Mask, made to order for 2009 C
2011 Pin Registered 8"x10" Master Negative Carrier D
2026 70mm Roll Film 100' Spool Carrier D
2014 8"x10" Negative Carrier Glass for 2007 Carrier C
2013 8"x10" Anti-Newton Glass for 2007 Carrier C
1514 Negative Carrier Glass for 2008 5x7 Mask  (12.5cm x 17.5cm) C
2623 Anti-Newton Glass for 2008 5x7 Mask  (12.5cm x 17.5cm) C
1515 Negative Carrier Glass for 2045 13x18cm Mask  (14cm x 19cm) C
2677 Anti-Newton Glass for 2045 13x18cm Mask  (14cm x 19cm) C
1915 4"x5" Negative Carrier Glass for 2009 Adapter C
1970 4"x5" Anti-Newton Glass for 2009 Adapter C


Lens Mounts
1922 3" Recess Lens Mount for 28-60mm lenses - Blank  C
1977 3" Recess Lens Mount with 39mm Leica thread C
2029 1½" Recess Lens Mount for 50-60mm lenses with 39mm Leica thread D
1920 1" Recess Lens Mount for 75-80mm lenses - Blank  C
1972 1" Recess Lens Mount with 39mm Leica thread C
1921 Flat Lens Mount for 90-240mm lenses - Blank  C
1973 Flat Lens Mount with 39mm Leica thread C
1974 Flat Lens Mount with 50mm thread C
1926 Flat Lens Mount with 58mm thread C
2012 Extended Lens Mount for 300mm lenses - Blank  C
1923 Lens Mount Extension Tube  (for reductions) C
1985  Extended Lens Mount with 39mm Leica thread  (for reductions) C
1971 Adapter for Durst lensboards C


Accessories
2031 8"x10" Reflex Copy Adapter (with counterbalance weight, req. springback)
1102 8"x10" Springback O
4806 8"x10" Springback C
2613 5"x7" Reflex Copy Adapter (with springback and counterbalance weights)
1907 4"x5" Reflex Copy Adapter (with springback and counterbalance weight)
1946 Copy Light System  (incandescent, clamps to baseboard)
2634 Copy Light System with Extended Arms  (incandescent)
2635 Extended Light Support Arms only
2646 Tungsten Halogen Copy Light System with Extended Arms
1939 Drop Table Assembly for Wall Mount chassis C
1916 Kit to convert Bench Enlarger to Wall Mount C
2624 Auxiliary Support Strut for Drop Table  C
2005 8"x10" Light Collecting Box for Dichromat Head  (replacement)
2028 240mm (?) Light Collecting Box for Dichromat Head   C
2006 5"x5" Light Collecting Box for Dichromat Head C
2019 6x7cm Light Collecting Box for Dichromat Head  C
2043 8"x10" Light Collecting Box for Closed Loop Dichromat  (replacement)
2042 5"x5" Light Collecting Box for Closed Loop Dichromat  C
2041 6x7cm Light Collecting Box for Closed Loop Dichromat  C
2696 Chassis Mounted Shutter for Std. Dichromat lamphouse
2695 Chassis Mounted Shutter for Closed Loop Dichromat lamphouse
3849 Density Probe for Closed Loop Dichromat lamphouses
1933 Analyzer Diffuser Disc C
3818 Dichromat Timer 120V D
1949  Dichromat Timer 240V D
3816 G/P Timer 120V D
3810 G/P Timer 240V D
3811 5 Amp Switch Box (for use with G/P Timer and Cathomag Head) D
3812 15 Amp Switch Box (for use with G/P Timer and Difcon Head) D
1955 Universal Timer 120/240V C
3845 120V Timer Interface for timers with US type plugs C
3847 Interface for Varicon/Cathomag heads and 1955 Timer C
3815 Footswitch for Timer C
1963 Swingaway Amber Filter with mounting post C
2023 Large Swingaway Amber Filter with mounting post
2024 Large Swingaway Red Filter with mounting post C
2022 Horizontal Projection Mirror D


Lamps
2016 ELH Lamp for Dichomat, Difcon, and Varicontrast lamphouses C
PH 212 150W 120V Enlarging Lamp for Varicon lamphouse C
1522 PH 2120 150W 240V Enlarging Lamp for Varicon lamphouse C
2015 Cold Cathode Tube for Cathomag Lamphouse
1521 6V 48W Point Source Lamp
