Arkay

High Speed RC Dryers

Arkay's High Speed RC Dyers are for resin coated papers - B&W, Colour, and diffusion transfer material.  After the print passes through the squeegee rollers, nothing touches it but warm, dry air and soft bottom rotating foam discs that move the print to the rear of the dryer onto a wire-dried print receiving rack. This assures print surface perfection while maintaining high speed production.  Both models accept prints as small as 3" x 5".  Stainless Steel construction, compact design, quiet operation.

Arkay RC-1100SS High Speed Print Dryer
RC-2100SS
For material up to 20" wide.
- up to 600 8"x10" prints per hour
- adjustable heat and speed controls
- temperature adjustable to 190°F
- detachable print receiving rack
- under dryer drip tray included
- 120 VAC, 50/60 Hz, 14.2 amps
- 5700 BTU/hr. maximum
- shipping weight 130 lbs.
RC-1100SS
For material up to 12" wide.
- up to 300 8"x10" prints per hour
- adjustable heat and speed controls
- temperature adjustable to 190°F
- detachable print receiving rack
- under dryer drip tray included
- 120 VAC, 50/60 Hz, 9.2 amps
- 3700 BTU/hr. maximum
- shipping weight 52 lbs.

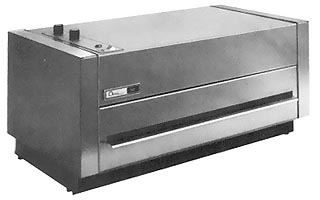

Arkay RC-2100SS High Speed Dryer

       Optional Dryer Accessories

- Stepdown Transformer, 230VAC 50/60 HZ




Arkay

RC Filter Flow Air Dryer

The Arkay RC Filter Flow Air Dyer offers an economical alternative for the drying of RC prints where high volumes are not required.  Air filter eliminates dust, assuring flat, spotless prints.  Thermostatically controlled for optimal drying temperature.  Can be used for "RC" and conventional papers.

Arkay RC-500A Filter Flow Print Dryer
RC-500A
For prints up to 11"x14"
- 4 pull out shelves
- 850 watts
- handles 4 - 11x14 or 8 - 8x10 prints per cycle
